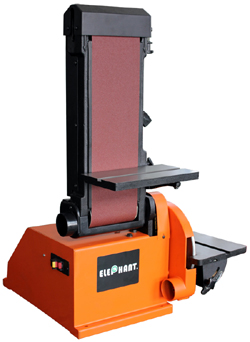

Belt Sander
| SB-611P BELT SANDER |
| PRODUCT DIMENSIONS |
| WEIGHT |
120 LBS. |
| W x D x H |
22 x 21 x 33 7/8 IN. |
| FOOTPRINT |
19 1/8 x 12 5/8 IN. |
| MOTOR |
| HORSEPOWER |
1 HP |
| AMPS / VOLTAGE |
9A at 115V，4.5A at 230V |
| SPEED |
3450 RPM |
| PHASE |
SINGLE |
| CYCLE |
60 HZ |
| NUMBER OF SPEED |
1 SPEED |
| TABLE INFO. |
| BELT TABLE DIMENSIONS |
10 5/8 x 6 1/8 IN. |
| BELT TABLE TILT |
'0° ~ 45° |
| DISC TABLE DIMENSIONS |
13 x 6 1/2 IN. |
| DISC TABLE TILT |
'0° ~ 45° |
| BELT INFO. |
| BELT DIMENSIONS |
6 x 48 IN. |
| SPEED |
1720 FPM |
| TILT |
0° ~ 90° |
| DISC INFO. |
| DISC DIMENSIONS |
10 IN. |
| SPEED |
3450 RPM |
| CONSTRUCTIONR |
| BASE |
IRON PLATE |
| TABLE |
CAST IRON |
| FRAME |
IRON PLATE |
| DISC |
ALUMINUM |
